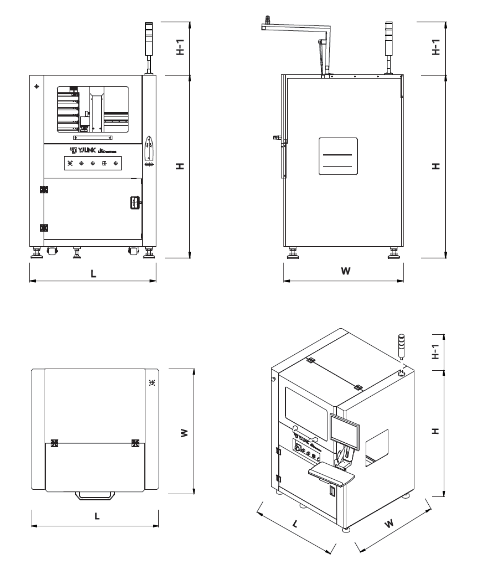

| 1 |
最小基板サイズ(L)X(W)mm |
70 X 70 |
| 2 |
最大基板サイズ(L)x(W)mm |
330 X 250 |
| 3 |
基板の厚さ(mm) |
0.3 ~ 4.0 |
| 4 |
基板エッジ(mm) |
3 |
| 5 |
基板上/下部品の高さ(mm) |
30 / 30 |
| 6 |
基板 移送の重さ(kg) |
1 |
| 7 |
コンベア速度 (mm/sec) |
200 |
| 8 |
コンベアベルト |
Flat edge belt |
| 9 |
移送の高さ(mm) |
950±20 / 900±20 |
| 10 |
基板搬送方向 |
Left to Right / Right to Left |
| 11 |
基準面レール |
Front / Rear |
| 12 |
Buffer section |
10 slots (60mm/pitch) |
| 13 |
カメラ Location Accuracy (mm) |
-0.05 ~ 0.05 |
| 14 |
カメラ X/Y-axis Speed (mm/sec) |
Max 500 |
| 15 |
空気圧力 |
0.5Mpa (5bar) |
| 16 |
空気消耗量(ℓ/min) |
52.5 |
| 17 |
消費電力(kw) |
2 |
| 18 |
電圧 |
220~230V/50~60Hz, 1Phase |
| 19 |
塗装色 |
SR RAL 7035 + UT-730M R/T Doosan MT Dark gray(G-40) |
| 20 |
カメラモジュール |
Specification : 5m pixel |
Resolution : 2.2um |
| Zoom : 80 ~ 120 fix |
Rotation : 360 degree full |
| 21 |
Main PC Controlled
(Supplied with equipment setting during production, it can be changed according to the specifications is required. The main specifications are as follows.)
|
OS : window 10 |
CPU : Intel 6th Gen Quad Core i5-6500/7500 3.2GHz/6MB |
| Memory : Samsung DDR4 32GB |
| HDD : 1TB |
Storage-Rack : ISGAN-F110-32P |
| PCI-e SLOT : GTX-1050 DDR5-2GB |
PCI : Ajinextek Motion board N-804 |
| Monitor : 24 inch LED Monitor |
PCI : Ajinextek I/O Carrier board BPHD
|
